Design: Interaction

This section details how the various services in the microservice architecture interact with each other to enable the auction game functionality.

Communication Patterns

The system employs three primary communication patterns, each selected for specific interaction requirements:

1. REST APIs: Used for synchronous request-response communications between services
2. Event-Driven Communication: Implemented with Kafka for asynchronous service-to-service communication
3. WebSockets: Employed for real-time bidirectional communication between clients and the auction service

Service Interaction Model

The system uses an API Gateway to manage incoming requests and route them to the appropriate service. It also handles authentication, ensuring that only valid requests reach the services. The details of the interactions between the services are outlined below.

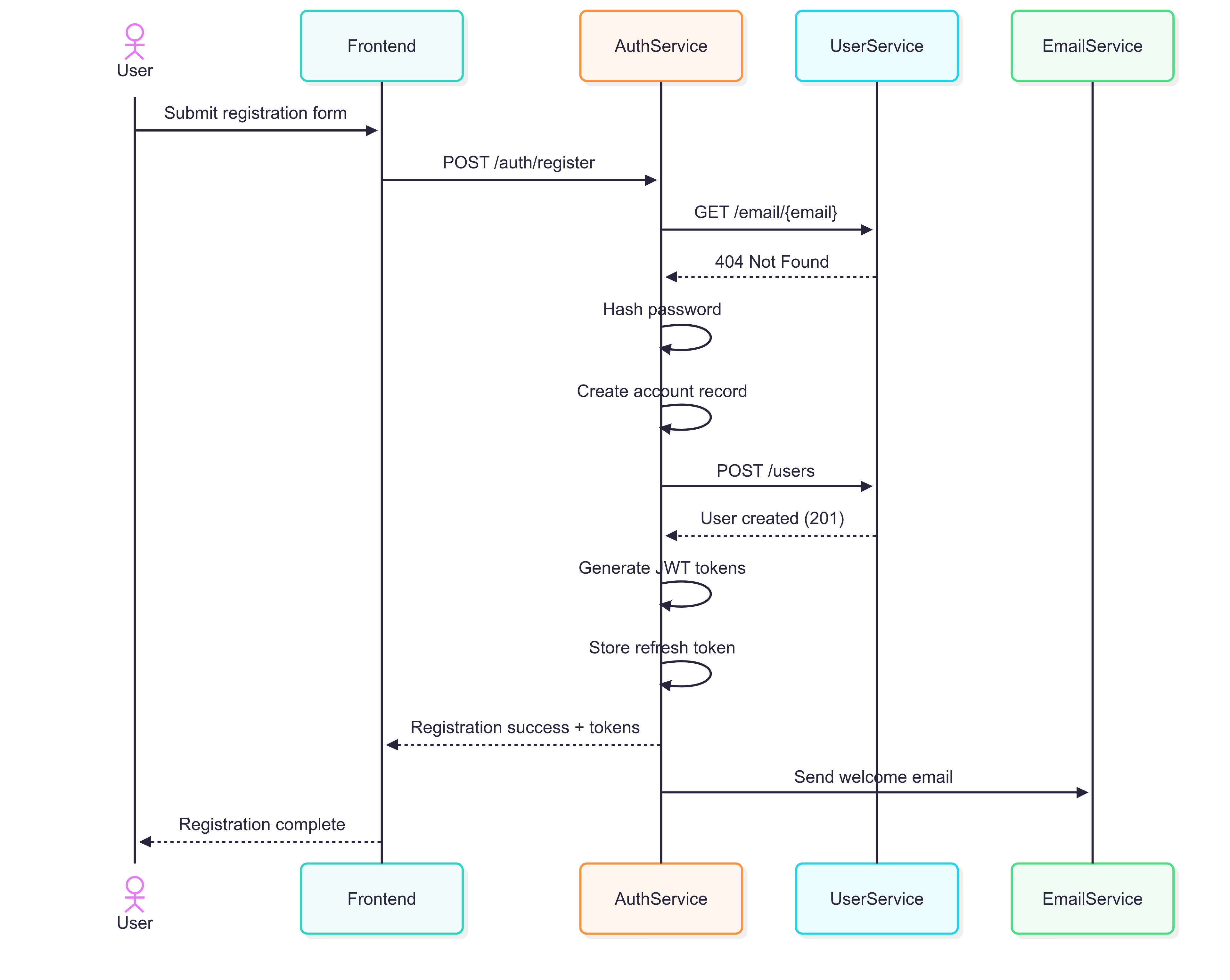

Authentication Service Interactions

The Authentication Service functions as the entry point for user authentication and primarily interacts with:

• User Service: Via REST API calls to:
  • Validate user existence
  • Retrieve user information (UID, email)
  • Verify user credentials during authentication operations
• External Email Service:
  • Sends emails during registration
  • Sends password reset emails

Lobby Service Interactions

The Lobby Service manages pre-game operations and communicates through:

• Event Production: Emits lobby-events to Kafka when:

  • A new lobby is created
  • A player joins a lobby
  • A player leaves a lobby
  • A player changes status (e.g., ready, not ready)
  • A game is started by the lobby creator
  • A game is deleted

• Event Consumption: Consume auction-events to:

  • Mark lobbies as completed when an auction game ends
  • Release players to join other lobbies

Auction Service Interactions

The Auction Service handles all in-game logic and interacts through:

• Event Consumption:

  • Processes lobby-events to:
    • Register new lobbies for accepting connections
    • Track player joins/leaves from lobbies
    • Initialize auction games when lobbies start
  • Process auction-events to:
    • Notify the connected players of game state changes via WebSocket (See below)

• Event Production: Emits auction-events when:

  • An auction game is completed
  • Game state changes that affect lobby status
  • Player actions (e.g., bids, sales) occur

• WebSocket Connections: Maintains direct real-time connections with clients for:

  • Receiving player actions
  • Broadcasting auction updates
  • Managing player connection status

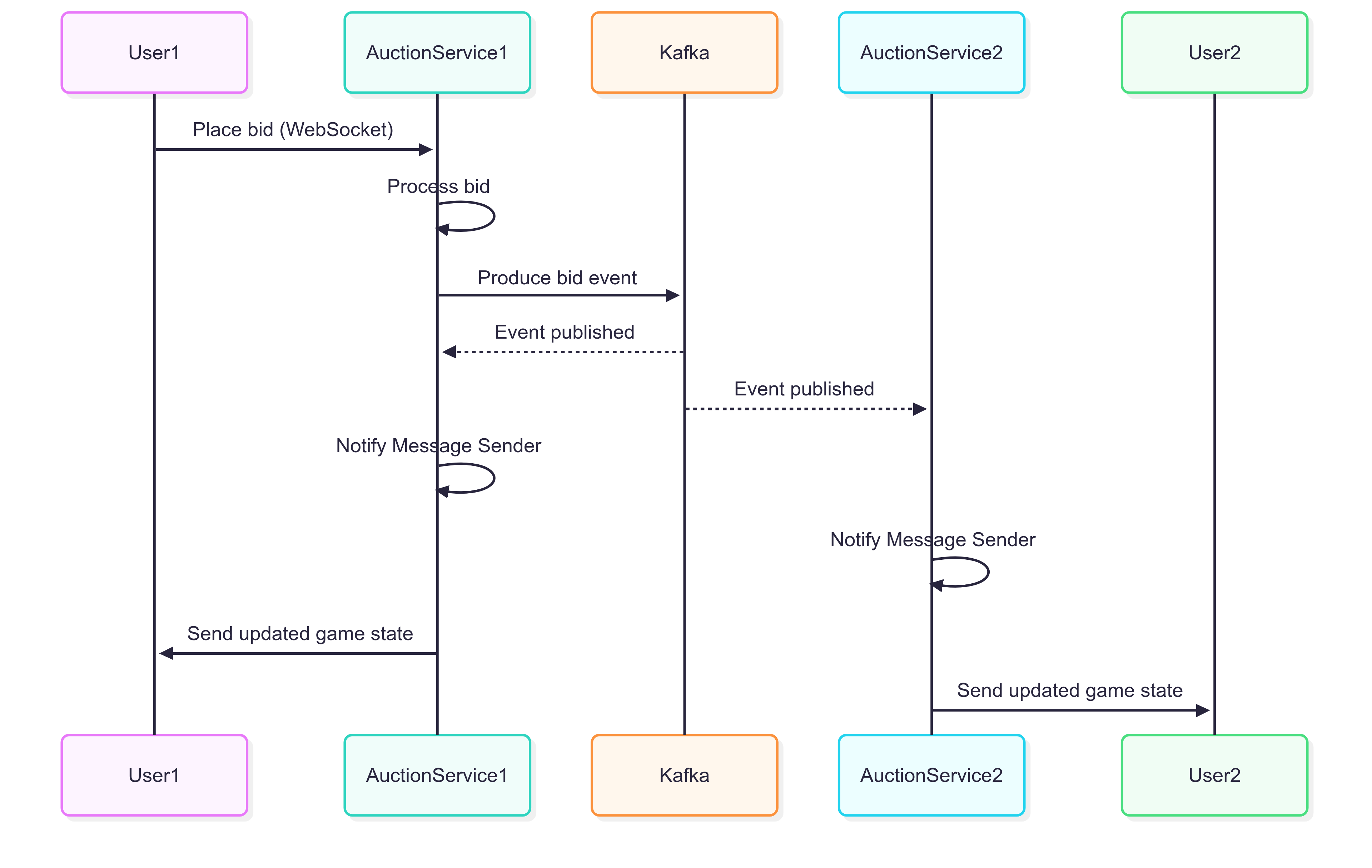

Why does the auction service both produce and consume auction-events?

The auction service is designed for scalability through replication. Each instance manages connections for a subset of players, meaning players in the same auction may connect to different instances. To ensure all players receive relevant updates, each instance produces auction-events for its connected players and consumes events from other instances (including itself).

There is no direct link between the system services and the Message Sender component. The Auction Consumer component aggregates all auction-events and serves as the primary source of truth for the Message Sender component. It implements all the Event Sources Interfaces.

class AuctionConsumer
  implements AuctionEventsSource,
    UserEventSource,
    TimerEventSource,
    PlayerEventSource

The Message Sender relies on the Auction Consumer to broadcast relevant events to connected players.

class MessageSender {
    constructor(
        auctionEventsSource: AuctionEventsSource,
        playerEventSource: PlayerEventSource,
        userEventSource: UserEventSource,
        timerEventSource: TimerEventSource
    )
} ...

Connecting the message sender with the Auction Consumer, enables the support for multiple instances. Otherwise, making the MessageSender subscribe to the actual services that generate the events (AuctionService, UserService ...), will only work with a single instance. Each instance of the Auction Service will consume all the events from the auction-event topic. While this is needed to ensure that all players receive the auction updates, there is no need that each replica consumes event from the lobby events topic. All the Lobby Consumer of the instances are part of the same consumer group, ensuring that a single event is processed by a single instance of the service. The consistency of the game state is maintained by using the same repository for all instances. This architecture supports horizontal scaling while maintaining consistency across instances. The approach to managing game state across instances and avoiding inconsistencies is detailed here.

Event System

The event-driven communication between the Lobby Service and Auction Service is crucial for maintaining system state consistency while preserving service independence. The following table outlines the events produced by the two services:

Lobby Events

Event Type	Producer	Consumer	Purpose
lobby-created	Lobby Service	Auction Service	Notifies when a new lobby is available for connections
lobby-joined	Lobby Service	Auction Service	Updates which players belong to a lobby
lobby-left	Lobby Service	Auction Service	Updates when a player leaves a lobby
lobby-started	Lobby Service	Auction Service	Triggers the initialization of an auction game
lobby-deleted	Lobby Service	Auction Service	Notifies when a lobby is deleted
player-status	Lobby Service	Auction Service	Updates the ready status of a player in the lobby

Auction Events

Event Type	Producer	Consumer	Purpose
player-connected	Auction Service	Lobby Service	Notifies when a player connects to an auction game
player-disconnected	Auction Service	Lobby Service	Notifies when a player disconnects from an auction game
player-update	Auction Service	Lobby Service	Updates player information during the auction
timer-start	Auction Service	Lobby Service	Notifies when a bidding timer starts
end-round	Auction Service	Lobby Service	Signals the end of a bidding round
end-auction	Auction Service	Lobby Service	Signals game completion so lobby can be marked as finished
sale	Auction Service	Lobby Service	Notifies when a player puts items up for sale
bid	Auction Service	Lobby Service	Notifies when a player places a bid

All the events structures are defined in a shared kernel module, named Common. The event-driven architecture allows for loose coupling between services, enabling them to evolve independently while still maintaining a consistent state across the system. Future implementations may include a statistics-service that consumes auction events to track player performance and game statistics.

Message System

The system implements a real-time message system for bidirectional communication between the frontend clients and the auction service. This communication is essential for delivering time-sensitive auction updates and receiving player actions.

WebSocket Communication

WebSockets are used to establish persistent connections between clients and the server, allowing for:

1. Bidirectional Communication: Enables both server-to-client (auction updates) and client-to-server (player bids) messages
2. Low Latency: Minimizes delay in auction updates, critical for competitive bidding
3. Connection State Awareness: Allows the system to track which players are actively connected

The API Gateway proxies WebSocket connections from clients to the Auction Service, maintaining authentication context while providing a single entry point for all client communications.

Message Types

The system defines a comprehensive set of message types to handle various aspects of the auction. All messages follow an event-like schema with a type field that enables easy message type detection and routing:

Message Type	Direction	Purpose
player-connected	Server → Client	Notifies when a player connects to the auction
player-disconnected	Server → Client	Notifies when a player disconnects
player-join	Server → Client	Announces a new player joining the auction
player-leave	Server → Client	Announces a player leaving the auction
new-bid	Server → Client	Broadcasts when a new bid is placed
new-sale	Server → Client	Broadcasts when a new item is put up for sale
auction-start	Server → Client	Signals the start of an auction
auction-end	Server → Client	Signals the end of an auction
round-end	Server → Client	Signals the end of a bidding round
timer-start	Server → Client	Notifies when a bidding timer starts
bid	Client → Server	Sent when a player places a bid
sell	Client → Server	Sent when a player puts items up for sale
time-sync	Client → Server	Used to synchronize client and server time

The event-like schema approach provides several benefits:

1. Type Safety: Using Zod for schema validation ensures type safety across the system
2. Consistent Structure: All messages follow a predictable pattern with a type discriminator
3. Easy Routing: The message type can be used to route messages to appropriate handlers

State Reconstruction for Reconnecting Players

A critical feature of the message system is its ability to handle player reconnections gracefully. When a player reconnects to an ongoing auction, the system must reconstruct the current auction state for them.

This is accomplished through the old field present in several message types:

The old field serves as a marker to distinguish between:

• State Reconstruction Messages (old: true): These messages are sent only to a reconnecting player to rebuild their view of the current auction state. They represent historical events that occurred while the player was disconnected.
• Real-Time Updates (old: false): These are new events occurring in real-time that should be processed as normal updates.

When a player reconnects, the MessageSender component:

1. Sends the current auction state with old: true
2. Sends information about all connected players with old: true
3. Begins sending real-time updates with old: false

This approach ensures that reconnecting players can seamlessly rejoin ongoing auctions without missing critical information, while also avoiding confusion between historical and current events.

Design Rationale

The interaction design delivers several key benefits:

1. Service Autonomy: Each service maintains ownership of its domain and can evolve independently without tight coupling

2. Communication Pattern Appropriateness:

   • REST APIs for user data retrieval where immediate responses are needed
   • Event-driven for cross-service state changes to support eventual consistency
   • WebSockets for real-time game interactions to support bidirectional communication

3. Scalability: The event-driven architecture allows independent scaling of services according to load patterns

4. Resilience: Services can continue functioning when other services are temporarily unavailable, with event processing resuming when connections are restored

Alternative Approaches Considered

1. Direct Service-to-Service REST Calls: We considered having the Auction Service directly call the Lobby Service API to update lobby status. This approach was rejected because:

   • It would create tighter coupling between services
   • It would introduce synchronous dependencies that reduce system resilience
   • It would make the system less tolerant to partial failures

2. Shared Database: Using a shared database between Lobby and Auction services was initially considered but rejected due to:

   • Violation of service boundaries and domain isolation
   • Reduced autonomy for schema evolution
   • Potential performance bottlenecks

Possible Improvements

Connection Service Extraction

The current architecture has the Auction Service performing dual responsibilities:

• Managing game logic
• Handling player connections.

This leads to the somewhat inefficient pattern where the service both produces and consumes its own auction-events to ensure all connected players receive updates.

A more elegant solution would be to extract the connection management into a dedicated Connection Service that would:

1. Maintain all WebSocket connections with players
2. Consume auction-events directly from Kafka
3. Route relevant updates to the appropriate connected players

This separation of concerns would offer several benefits:

• Simplified Auction Service: The Auction Service could focus solely on game logic without managing connections
• Eliminated Self-Consumption: Auction Service instances would no longer need to consume their own events
• Improved Scalability: Connection management could scale independently from game logic processing
• Enhanced Maintainability: Clearer boundaries between connection handling and business logic

While this approach would introduce additional architectural complexity, it would result in a more maintainable system with better separation of concerns and reduced message overhead.
